| project | unit | Parameter value and unit | |

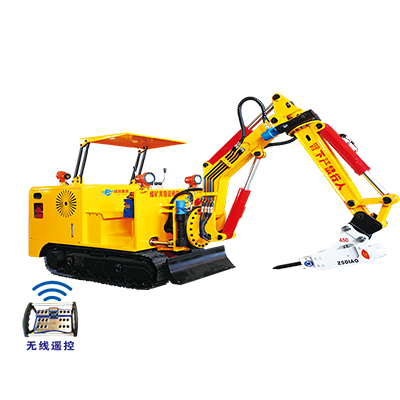

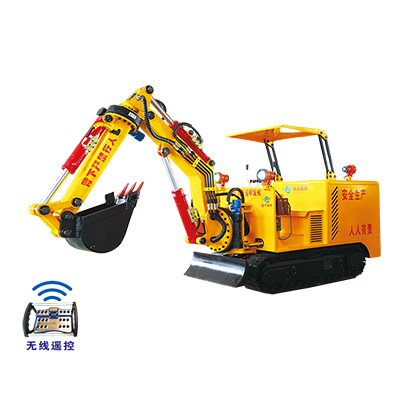

| WPZ-30/600L | |||
| Into the well size (length × width × height) | mm | 4500×1000×1600(±50) | |
| Working Dimensions (L×W×H) | mm | 6600×1000×3500(±50) | |
| Main engine turning radius | mm | ≤6000 | |
| Installed power | kW | 30 | |
| traction | kN | ≥15 | |
| Hydraulic system rated pressure | MPa | 18 | |
| hydraulic system maximum flow | L/min | 30/60 | |
| hydraulic oil temperature | ℃ | 70 | |
| Walking drive mode | / | Integrated hydraulic motor reducer drive | |
| Building strip width | mm | 250 | |
| Ground specific pressure | MPa | 0.1 | |
| Walking speed | m/min | 20 | |
| Ground clearance | mm | 170 | |
| Gradeability | . | 20 | |
| digging width | mm | ≥5000 | |
| arm swing angle |
| Left and right each 40 | |
| Arm turn angle |
| Left and right each 90 | |
| Stick flip angle |
| 360 | |
| Digging distance | mm | 2000-3600 | |
| digging height | mm | ≥3500 | |
| unloading height | mm | Front shovel ≥ 2400; back hoe ≥ 1500 | |
| digging depth | mm | ≥1500 | |
| bucket loading | Bucket capacity | m³ | 0.1(±50) |
| bucket digging force | kN | 40 | |
|
Hammer | Fixed work stress | MPa | 13 |
| Maximum Work Flow | L/min | 40 | |
| Shock frequency | Hz | 7.5～16 | |
| Impact ability | J | 600 | |
| Adapt to the specification of drilling tools | mm | 45 | |
| noise | dB(A) | ≤120 | |
| Machine quality | kg | 5000(±50) | |
